Selmi Mould Loader

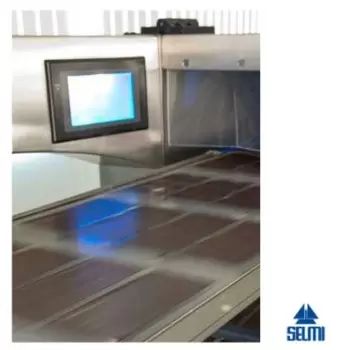

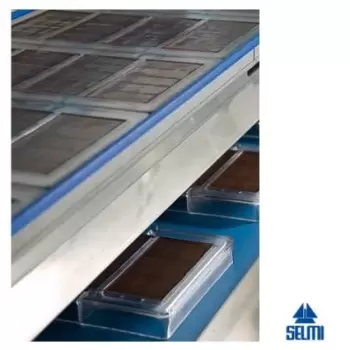

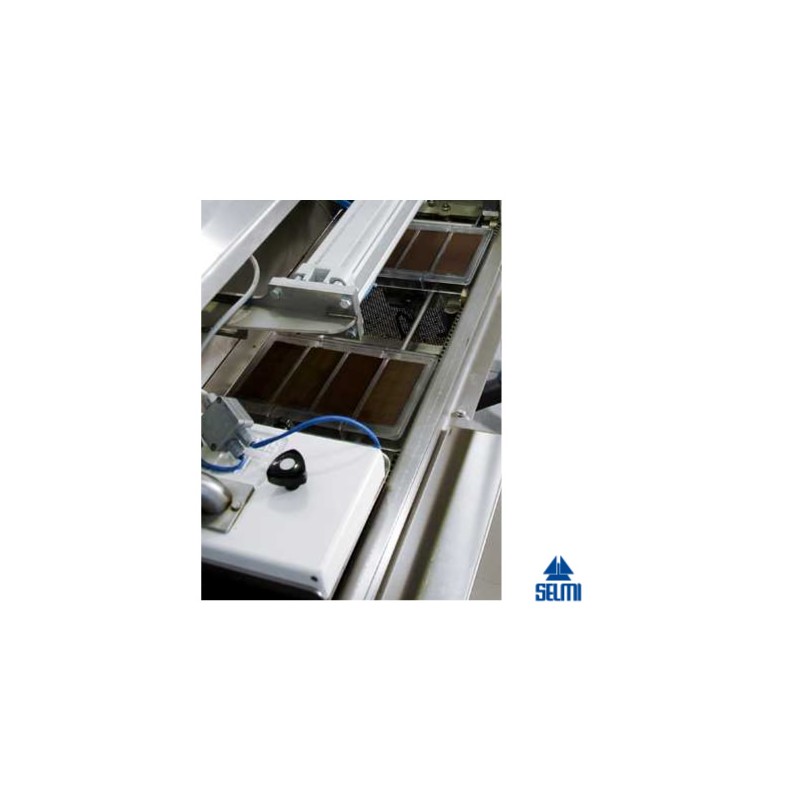

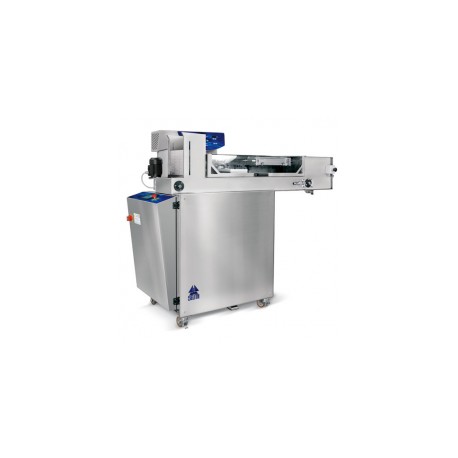

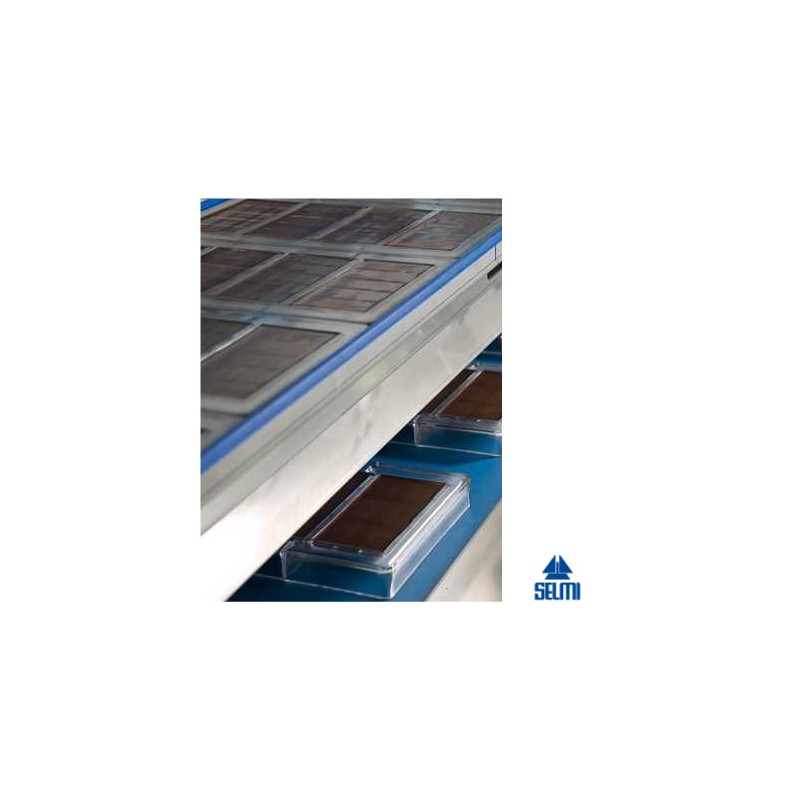

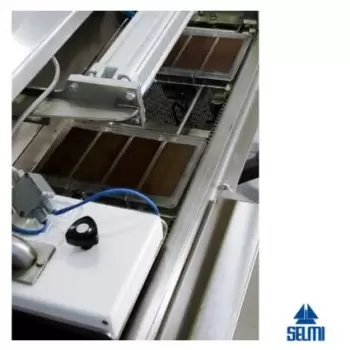

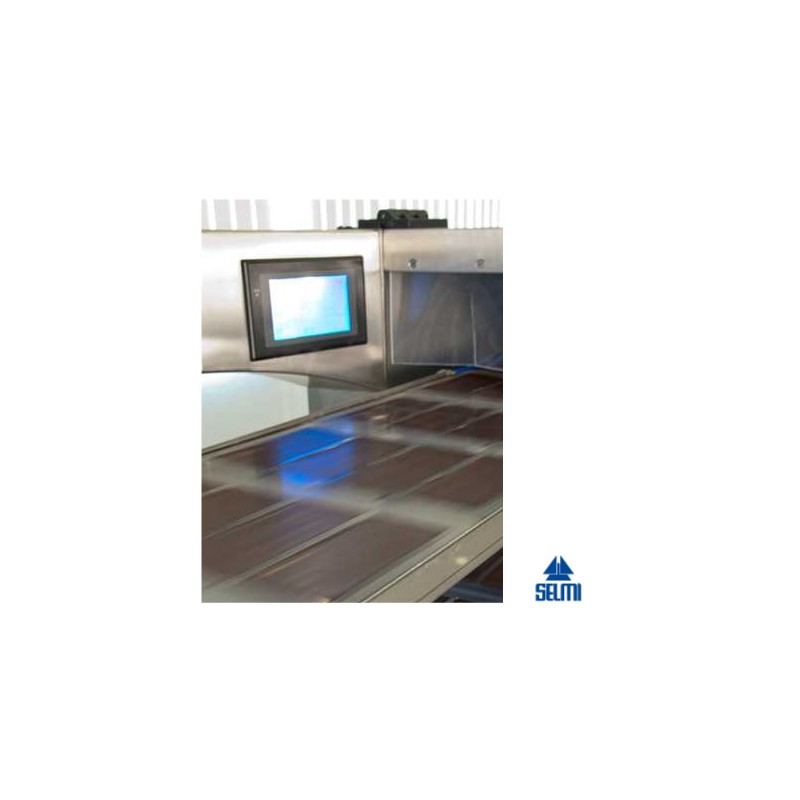

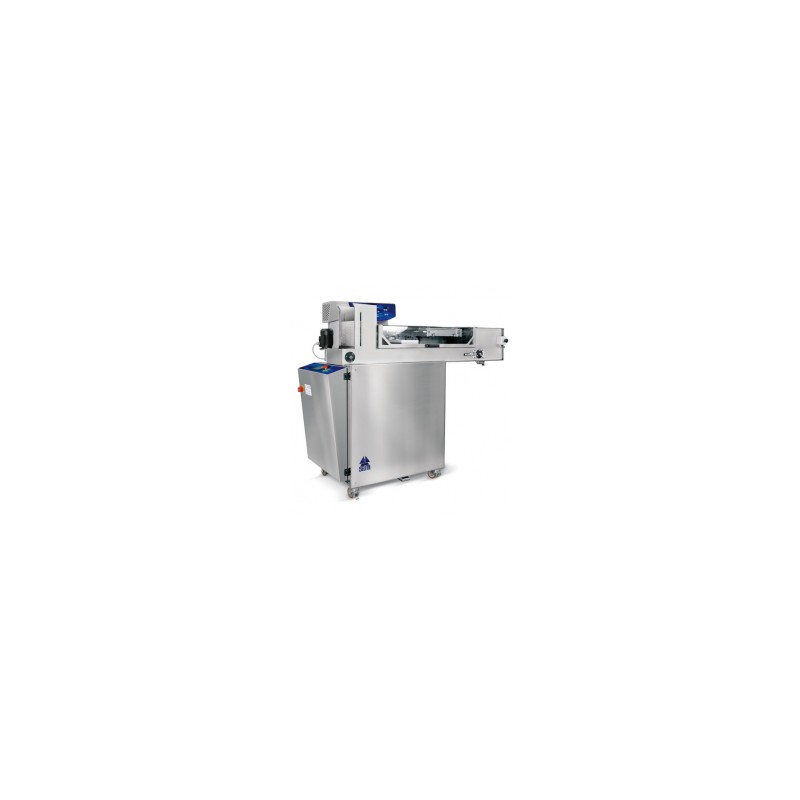

Automatic transfer loader for filling, vibrating and levelling polycarbonate Molds (275x175 mm). The system uses the Top tempering device and, with greatly reduced dimensions, performs the same automated operations reserved up to now for traditional industrial lines. There are 4 mould movements and 4 workstations: filling via perforated pouring head, 1st vibrating level, pneumatic surface levelling and 2nd vibrating level. The mould is expelled directly into the cooling tunnel for the subsequent removal of the chocolate. Hourly Production: 360 Molds/hour Power Requirements: 220V, 3 phase, needs to be connected to a compressor generating at least 4 bar Dimenions: approx. w: 74" x l: 25.75" x h: 59"
